Task: BCH/SLP Activation

task::enable_bch::initAPI-v2task::enable_bch::init

Use this method for task managed activation of BCH and SLP tokens. Refer to the task managed activation overview for activation of other coin types.

Arguments

Parameter Type Required Default Description
ticker string ✓ Ticker of the platform protocol coin. Options: BCH or tBCH
bchd_urls array of strings ✓ A list of BCHD gRPC API server URLs, used for validation of SLP token transactions. It's recommended to add as many servers as possible. The URLs list can be found at https://bchd.fountainhead.cash/.
mode object ✓ A standard ActivationMode object.
tx_history boolean – false If true, spawns a background loop to store the local cache of address(es) transactions.
slp_tokens_requests array of objects ✓ A list of standard TokensRequest objects.
address_format object – Overwrites the address format from coins file, if set. A standard AddressFormat object.
allow_slp_unsafe_conf boolean – false If true, allows bchd_urls to be empty. Warning: it is highly unsafe to do so as it may lead to invalid SLP transactions generation and tokens burning.
get_balances boolean – true If false, coin and token balances will not be returned in the response, and the response will be returned more quickly.
required_confirmations integer – value in the coins file, or 3 if not set Confirmations to wait for steps in swap.
requires_notarization boolean – true Has no effect on BCH.
tx_history boolean – true If true the Komodo DeFi Framework API will preload transaction history as a background process. Must be set to true to use the my_tx_history method
utxo_merge_params object ✓ A standard UtxoMergeParams object. Used to reduce a wallet's UTXO count in cases where it is causing significantly slower RPC responses.

Response

Parameter Type Required Description
task_id integer ✓ An identifying number which is used to query task status.

📌 Examples

Activation in Trezor mode

POST task::enable_bch::init
{
  "userpass": "RPC_UserP@SSW0RD",
  "mmrpc": "2.0",
  "method": "task::enable_bch::init",
  "params": {
    "ticker": "BCH",
    "activation_params": {
      "bchd_urls": [
        "https://bchd.dragonhound.info"
      ],
      "mode": {
        "rpc": "Electrum",
        "rpc_data": {
          "servers": [
            {
              "url": "bch.electrum3.cipig.net:10055",
              "protocol": "TCP"
            },
            {
              "url": "bch.electrum3.cipig.net:20055",
              "protocol": "SSL"
            },
            {
              "url": "bch.electrum3.cipig.net:30055",
              "protocol": "WSS"
            }
          ]
        }
      },
      "slp_tokens_requests": [
        {
          "ticker": "USDF"
        },
        {
          "ticker": "ASLP-SLP",
          "required_confirmations": 3
        }
      ],
      "tx_history": true,
      "required_confirmations": 5,
      "requires_notarization": false,
      "address_format": {
        "format": "cashaddress",
        "network": "bitcoincash"
      },
      "utxo_merge_params": {
        "merge_at": 50,
        "check_every": 10,
        "max_merge_at_once": 25
      }
    }
  }
}
Show Response

Response

{
  "mmrpc": "2.0",
  "result": {
    "task_id": 1
  },
  "id": null
}

task::enable_bch::statusAPI-v2task::enable_bch::status

After running the task::enable_bch::init method, we can query the status of activation to check its progress. The response will return the following:

  • Result of the task (success or error)
  • Progress status (what state the task is in)
  • Required user action (what user should do before the task can continue)

Arguments

Parameter Type Required Default Description
task_id integer ✓ The identifying number returned when initiating the initialisation process.
forget_if_finished boolean – true If false, will return final response for completed tasks.

Command

POST task::enable_bch::status
{
  "userpass": "RPC_UserP@SSW0RD",
  "mmrpc": "2.0",
  "method": "task::enable_bch::status",
  "params": {
    "task_id": 0,
    "forget_if_finished": false
  }
}
Parameter Type Required Description
status string ✓ A short indication of how the enabling is progressing.
details object ✓ Depending on the state of enabling progress, this will contain different information as shown in the responses below.

Possible status values while activation is in progress:

  • ActivatingCoin: The first step of activation. It does not require any action from the user.
  • RequestingWalletBalance: The first step of activation, while initial balances info is being requested. It does not require any action from the user.
  • Finishing: Activation process completed
  • WaitingForTrezorToConnect: Waiting for the user to plugin a Trezor device
  • FollowHwDeviceInstructions: Waiting for the user to follow the instructions on the device

Once complete, status will be Ok, and the details object will have the following structure:

Response (ready, successful, HD mode)

ParameterTypeDescription
current_blockintegerBlock height of the coin being activated
tickerstringTicker of the coin being activated.
wallet_balanceobjectA standard WalletBalanceInfo object. Note: the structure may vary based on the get_balances parameter value in the activation request.
Show Response
{
    "mmrpc": "2.0",
    "result": {
        "status": "Ok",
        "details": {
            "ticker": "BCH",
            "current_block": 895348,
            "wallet_balance": {
                "wallet_type": "HD",
                "accounts": [
                    {
                        "account_index": 0,
                        "derivation_path": "m/44'/145'/0'",
                        "total_balance": {
                            "BCH": {
                                "spendable": "0",
                                "unspendable": "0"
                            }
                        },
                        "addresses": [
                            {
                                "address": "bitcoincash:qq6qvc33strtjwnfktdqswwvxuhrhs2ussavvhv3a0",
                                "derivation_path": "m/44'/145'/0'/0/0",
                                "chain": "External",
                                "balance": {
                                    "BCH": {
                                        "spendable": "0",
                                        "unspendable": "0"
                                    }
                                }
                            }
                        ]
                    }
                ]
            }
        }
    },
    "id": null
}

Response (ready, successful, Iguana mode)

ParameterTypeDescription
current_blockintegerBlock height of the coin being activated
tickerstringTicker of the coin being activated.
wallet_balanceobjectA standard WalletBalanceInfo object. Note: the structure may vary based on the get_balances parameter value in the activation request.
Show Response

Response (in progress)

Show Response
{
  "mmrpc": "2.0",
  "result": {
    "status": "InProgress",
    "details": "RequestingWalletBalance"
  },
  "id": null
}

Response (ready, error)

ParameterTypeDescription
statusstringA short indication of how the requested process is progressing.
details.resultobjectDepending on the state of process progress, this will contain different information as detailed in the items below.
.errorstringThe ticker of the coin being activated
.error_pathstringUsed for debugging. A reference to the function in code base which returned the error
.error_tracestringUsed for debugging. A trace of lines of code which led to the returned error
.error_typestringAn enumerated error identifier to indicate the category of error
.error_datastringAdditonal context for the error type

Possible Error Cases:

  • TaskTimedOut - Timed out waiting for coin activation, connecting to the device trezor or for user to confirm pubkey)
  • CoinCreationError - Error during activation. E.g. incorrect or inactive electrum servers.
  • HwError - This is the most important error type. Unlike other error types, HwError requires the GUI / User to check the details in error_data field to know which action is required. View the HwError error type details for more info.

task::enable_bch::user_actionAPI-v2task::enable_bch::user_action

If the task::enable_bch::status returns UserActionRequired, we need to use the task::enable_bch::user_action method to enter our PIN

Arguments

ParameterTypeDescription
task_idintegerThe identifying number returned when initiating the initialisation process.
user_actionobjectObject containing the params below
user_action.action_typestringWill be TrezorPin for this method

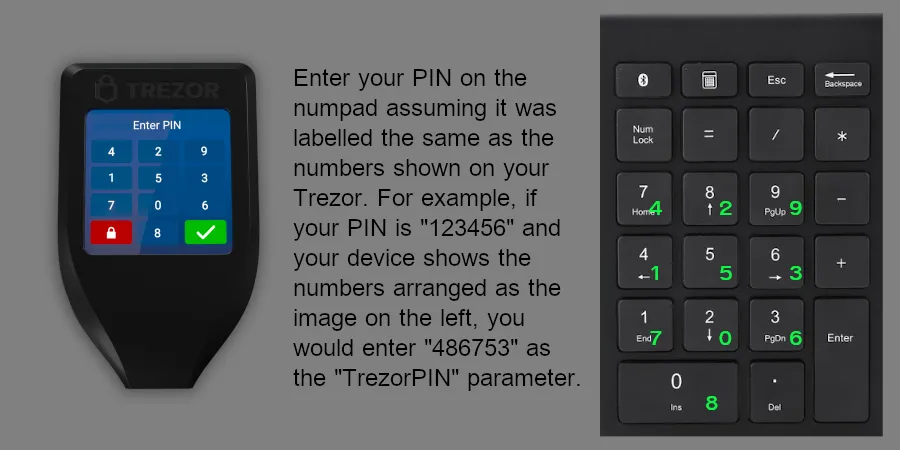

user_action.pinstring (number)When the Trezor device is displaying a grid of numbers for PIN entry, this param will contain your Trezor pin, as mapped through your keyboard numpad. See the image below for more information.
Trezor Pin

Response

ParameterTypeDescription
resultstringThe outcome of the request.

📌 Examples

Command

POST task::enable_bch::user_action
{
  "userpass": "RPC_UserP@SSW0RD",
  "mmrpc": "2.0",
  "method": "task::enable_bch::user_action",
  "params": {
    "task_id": 0,
    "user_action": {
      "action_type": "TrezorPin",
      "pin": "862743"
    }
  }
}
Show Response

Response (success)

{
  "mmrpc": "2.0",
  "result": "success",
  "id": null
}

task::enable_bch::cancelAPI-v2task::enable_bch::cancel

If you want to cancel the enabling process before it has completed, you can use this method.

Arguments

StructureTypeDescription
task_idintegerThe identifying number returned when initiating the enabling process.

Response

StructureTypeDescription
resultstringIndicates task cancellation was succesful.
errorstringAn error message to explain what went wrong.
error_pathstringAn indicator of the class or function which reurned the error.
error_tracestringAn indicator of where in the source code the error was thrown.
error_typestringAn enumerated value for the returned error.
error_datastringThe input task ID which resulted in the error.
POST task::enable_bch::cancel
{
  "userpass": "RPC_UserP@SSW0RD",
  "method": "task::enable_bch::cancel",
  "mmrpc": "2.0",
  "params": {
    "task_id": 3
  }
}
Show Response

Response (success)

{
  "mmrpc": "2.0",
  "result": "success",
  "id": null
}
Show Error Responses

Response (success - already finished)

{
  "mmrpc": "2.0",
  "error": "Task is finished already",
  "error_path": "init_standalone_coin.manager",
  "error_trace": "init_standalone_coin:144] manager:101]",
  "error_type": "TaskFinished",
  "error_data": 0,
  "id": null
}

Response (error - no such task)

{
  "mmrpc": "2.0",
  "error": "No such task '1'",
  "error_path": "init_standalone_coin",
  "error_trace": "init_standalone_coin:119]",
  "error_type": "NoSuchTask",
  "error_data": 1,
  "id": null
}
